  PRODUCT >> TELECOM >> OTHER TOOL


 Item Name:  NEX10 Torque Wrench

 Product Class:  Torque Wrench
 Product Model:  TW-NEX10-3N/12
 Body Material:  Steel
 Torsion:  3N.m
 Open Size:  12mm
 Application:  Locking the NEX10 Connector
 Packing Detailed:  Box Packing
 Item Name:  4.3/10 MINI DIN Torque Wrench

 Product Class:  GELVO Type
 Product Model:  TW-43MD-5N/22 , TW-43MD-5N/24
 Body Material:  Steel
 Torsion:  5N.m
 Open Size:  22mm or 24mm (Optional)
 Application:  Locking the 4.3/10 MINI DIN Connector
 Packing Detailed:  Box Packing
 Item Name:  4.1/9.5 MINI DIN Torque Wrench

 Product Class:  GELVO Type
 Product Model:  TW-41MD-10N/22 , TW-41MD-10N/24
 Body Material:  Steel
 Torsion:  10N.m
 Open Size:  22mm or 24mm (Optional)
 Application:  Locking the 4.1/9.5 MINI DIN Connector
 Packing Detailed:  Box Packing
 Item Name:  N Type Torque Wrench

 Product Class:  GELVO Type
 Product Model:  TW-N-2N/19
 Body Material:  Steel
 Torsion:  2N.m
 Open Size:  19mm
 Application:  Locking the N type Connector
 Packing Detailed:  Box Packing
 Item Name:  7/16(DIN) Torque Wrench

 Product Class:  GELVO Type
 Product Model:  TW-716D-25N/32
 Body Material:  Steel
 Torsion:  25N.m
 Open Size:  32mm
 Application:  Locking the 7/16(DIN) Connector
 Packing Detailed:  Box Packing
 Item Name:  SMA Connector Torque Wrench

 Product Class:  Torque Wrench
 Product Model:  TW-SMAM-8
 Body Material:  Aluminium Alloy
 Output Torque:  0.8~1.1 N/M
 Match Connector:  For SMA Male (1.0 N/M)
 Open Size:  8mm
 Packing Detailed:  Box Packing
 Item Name:  1/2" Superflexible Feeder Cutter Tool

 Product Class:  GELVO Type
 Product Model:  TOL-1/2SF-RS
 Body Material:  PP/FB Injection Molding
 Match Cable:  1/2" Superflexible Feeder Cable
 Annotation:  3 PCS Blades Spare
 Cut Inner Conductor:  Unlimited
 Cut Out Conductor:  20.0±1.0mm (Cut jacket) */**
 Item Name:  1/2" Standard Feeder Cutter Tool

 Product Class:  GELVO Type
 Product Model:  TOL-1/2-RSC ( New! )
 Body Material:  PP/FB Injection Molding
 Match Cable:  1/2" Standard Feeder Cable
 Annotation:  3 PCS Blades Spare
 Cut Inner Conductor:  Unlimited
 Cut Out Conductor:  20.0±1.0mm (Cut jacket) */**
 Item Name:  1/2" Standard Feeder Cutter Tool

 Product Class:  GELVO Type
 Product Model:  TOL-1/2-RS (Stop Production)
 Body Material:  PP/FB Injection Molding
 Match Cable:  1/2" Standard Feeder Cable
 Annotation:  3 PCS Blades Spare
 Cut Inner Conductor:  Unlimited
 Cut Out Conductor:  20.0±1.0mm (Cut jacket) */**
 Item Name:  1/2" Standard Feeder Cutter Tool

 Product Class:  GELVO Type
 Product Model:  TOL-1/2-RSL (Stop Production)
 Body Material:  PP/FB Injection Molding
 Match Cable:  1/2" Standard Feeder Cable
 Annotation:  3 PCS Blades Spare
 Cut Inner Conductor:  Unlimited
 Cut Out Conductor:  24.0±1.0mm (Cut jacket) */**
 Item Name:  7/8" Feeder Cutter Tool

 Product Class:  GELVO Type
 Product Model:  TOL-7/8-RS  (Stop Production)
 Body Material:  PP/FB Injection Molding
 Match Cable:  7/8" Feeder Cable
 Annotation:  3 PCS Blades Spare
 Cut Inner Conductor:  0.0mm (Cut off inner)
 Cut Out Conductor:  28.0±1.0mm (Cut jacket) */**
 Item Name:  1/2" Superflexible Feeder Cutter Tool

 Product Class:  GELVO Type
 Product Model:  TOL-1/2SF-HXC (HXDX-T302)
 Body Material:  PP Injection Molding
 Match Cable:  1/2" Superflexible Feeder Cable
 Annotation:  1 PCS Blades Spare
 Cut Inner Conductor:  Unlimited
 Cut Out Conductor:  13.0±1.0mm (Cut jacket) */**
 Item Name:  7/8" Feeder Cutter Tool

 Product Class:  GELVO Type
 Product Model:  TOL-7/8-HXC (HXDX-T301)
 Body Material:  PP Injection Molding
 Match Cable:  7/8" Feeder Cable
 Annotation:  3 PCS Blades Spare
 Cut Inner Conductor:  0.0mm (Cut off inner)
 Cut Out Conductor:  26.0±1.0mm (Cut jacket) */**
 Item Name:  1/2" Standard Feeder Cutter Tool

 Product Class:  GELVO Type
 Product Model:  TOL-1/2-GTDZ
 Body Material:  Alloy Foundry
 Match Cable:  1/2" Standard Feeder Cable
 Annotation:  1 PCS Blades Spare
 Cut Inner Conductor:  Unlimited
 Cut Out Conductor:  30.0±1.0mm (Cut jacket) */**
 Item Name:  7/8" Feeder Cutter Tool
 Product Class:  GELVO Type
 Product Model:  TOL-7/8-GTDZ
 Body Material:  Alloy Foundry
 Match Cable:  7/8" Feeder Cable
 Annotation:  1 PCS Blades Spare
 Cut Inner Conductor:  0.0mm (Cut off inner)
 Cut Out Conductor:  37.0±1.0mm (Cut jacket) */**
 Item Name:  1/2" Superflexible Feeder Cutting Tool
 Product Class:  Cutting Tool , Stripper Tool ( New ! )
 Product Model:  TOL-1/2"SF-EM , All in One (Universal)
 Body Material:  Hard Aluminium Alloy
 Match Cable:  1/2" Superflexible Feeder Cable
 Cut Inner Conductor:  6.0~11.5mm ***
 Stripper jacket:  20.0±1.0mm (Stripper jacket) *
 Working Style:  Electric Pistol Drill or Manual Operation

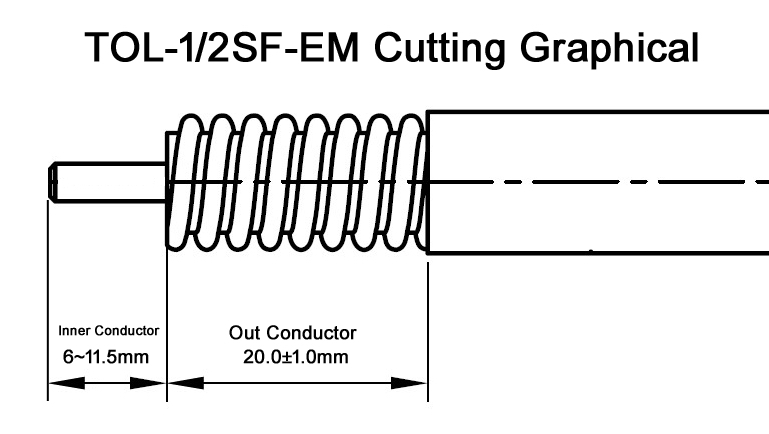

 Item Name:  TOL-1/2"SF-EM Conductor Cutting Blade
 Product Model:  BLD-1/2"SF-CD
 Body Material:  Tungsten Steel
 Remark Graphical:





 View Large Picture



 Item Name:  TOL-1/2"SF-EM Jacket Cutting Blade
 Product Model:  BLD-1/2"SF-JK
 Body Material:  Tungsten Steel
 Remark Graphical:





 View Large Picture



 Item Name:  1/2" Standard Feeder Cutting Tool
 Product Class:  Cutting Tool , Stripper Tool ( New ! )
 Product Model:  TOL-1/2"-EM , All in One (Universal)
 Body Material:  Hard Aluminium Alloy
 Match Cable:  1/2" Standard Feeder Cable
 Cut Inner Conductor:  6.0~11.5mm ***
 Stripper jacket:  15.0 & 20.0±1.0mm (Dual-Use) ****
 Working Style:  Electric Pistol Drill or Manual Operation

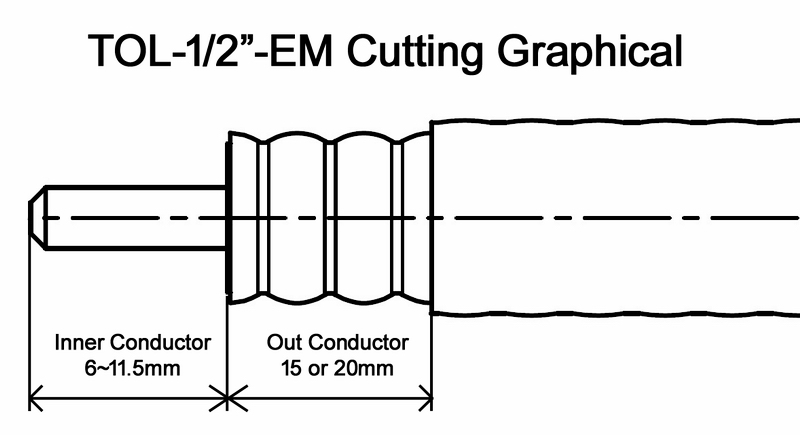

 Item Name:  TOL-1/2"-EM Conductor Cutting Blade
 Product Model:  BLD-1/2"-CD
 Body Material:  Tungsten Steel
 Remark Graphical:





 View Large Picture



 Item Name:  TOL-1/2"-EM Jacket Cutting Blade
 Product Model:  BLD-1/2"-JK
 Body Material:  Tungsten Steel
 Remark Graphical:





 View Large Picture



 Item Name:  Electric Pistol Drill (Power-Driven)
 Product Class:  China Type
 Product Model:  BIUDE-PA6
 Voltage:  DC12V
 Application:  Drills TOL-1/2SF-EM & TOL-1/2-EM
 Packing Detailed:  Box Packing
 Item Name:  1-1/4" Feeder Cutter Tool
 Product Class:  GELVO Type
 Product Model:  TOL-1-1/4"-ACM
 Body Material:  Aluminum
 Match Cable:  1-1/4" Feeder Cable
 Annotation:  Only for N/DIN-1-1/4"-CPE
 Packing Detailed:  Box Packing
 Item Name:  1-5/8" Feeder Cutter Tool
 Product Class:  GELVO Type
 Product Model:  TOL-1-5/8"-ACM
 Body Material:  Aluminium
 Match Cable:  1-5/8" Feeder Cable
 Annotation:  Only for N/DIN-1-5/8"-CPE
 Packing Detailed:  Box Packing
 Item Name:  1/2" Feeder Cutter Tool
 Product Class:  Andrew Type  *****
 Product Model:  MCPT-L4
 Body Material:  ABS Injection Molding
 Match Cable:  1/2" Feeder Cable
 Annotation:  5 PCS Blades Spare
 Packing Detailed:  Color Box Packing
 Item Name:  7/8" Feeder Cutter Tool
 Product Class:  Andrew Type  *****
 Product Model:  MCPT-78
 Body Material:  ABS Injection Molding
 Match Cable:  7/8" Feeder Cable
 Annotation:  5 PCS Blades Spare
 Packing Detailed:  Color Box Packing
 Item Name:  1/4",1/2" Superflexible Cutter Tool
 Product Class:  Andrew Type  *****
 Product Model:  MCPT-1412
 Body Material:  PP Injection Molding
 Match Cable:  1/4",1/2" Superflexible Feeder Cable
 Annotation:  1 PCS Blades Spare
 Packing Detailed:  Color Box Packing
 Item Name:  Diagonal Pliers (Cut Inner Conductor)
 Product Class:  China Type
 Product Model:  DP-CD5
 Body Material:  Steel
 Application:  Cut the 1/2 "& 1/2"SF Inner Conductor
 Packing Detailed:  Box Packing
 Item Name:  Flat Needle File (Burring Conductor)
 Product Class:  China Type
 Product Model:  FNF-180/5
 Body Material:  Steel
 Application:  Burring the Inner/Out Conductor
 Packing Detailed:  Box Packing
 Item Name:  Electrician Knife (Stripping the Jacket)
 Product Class:  China Type
 Product Model:  EK-PG
 Body Material:  Steel
 Application:  Use for Stripping the Jacket
 Packing Detailed:  Box Packing
 Item Name:  Hacksaw (Cut the Feeder Cable)
 Product Class:  China Type
 Product Model:  FSD0453-0112
 Body Material:  Steel
 Application:  Use for Cut the Feeder Cable
 Packing Detailed:  Box Packing
 Item Name:  Stay Wrench (Locking N Connector)
 Product Class:  China Type
 Product Model:  SD-19/21
 Body Material:  Steel
 Application:  Locking the N type Connector
 Packing Detailed:  Box Packing
 Item Name:  Stay Wrench (Locking DIN Connector)
 Product Class:  China Type
 Product Model:  SD-30/32
 Body Material:  Steel
 Application:  Locking the 7/16(DIN) type Connector
 Packing Detailed:  Box Packing

 * This size is stripping the jacket length of the out conductor (Not include the inner conductor size).

** New use: You can cut the jacket length free size (Skill use)
 *** The inner conductor cut size can adjust with inside adjusting block.

**** It's dual-purpose for different size 1/2" cable connector (Two cut slot inside).

***** For Andrew type ,the lead time according to the Andrew shipping time.
