GNSS ANTENNAE

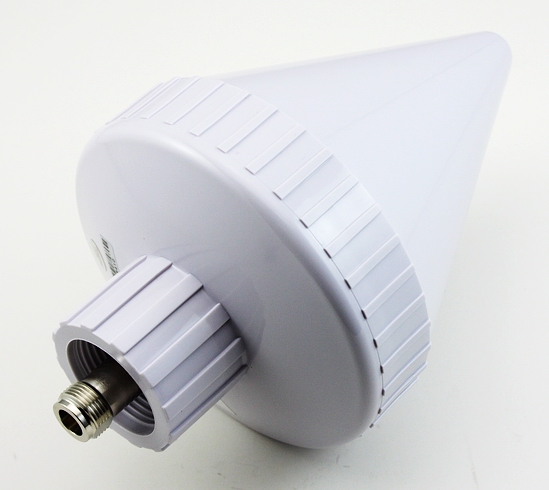

GNSS Antennas
Item Name:
GPS Timing Antenna
3dB Beamwidth
110 ±
10
Model:
GPS-1575-28DBN
Front to Back:
10dB MIN
Class:
Timing Antenna
Axial Ratio:
5dB MAX
Frequency:
1575.42
±
5
MH
z
Voltage
:
DC3.5~9V
Noise Figure
:
2.7 dB MAX
Current:
25
m
A MAX
Gain:
28
d
B
Impedance:
50 Ω
,
N/F
VSWR:
≤ 2.5
Weight:
1.0
kg
Item Name:
GPS Timing Antenna
3dB Beamwidth
110 ±
10
Model:
GPS-1116-43DBN
Front to Back:
10dB MIN
Class:
Timing Antenna
Axial Ratio:
5dB MAX
Frequency:
1166-1218MHz
Voltage
:
DC3~12V
1559-1606MHz
Current:
45
m
A MAX
Gain:
43 d
B
Impedance:
50 Ω
,
N/F
VSWR:
≤ 1.8
Weight:
1.0
kg
Item Name:
GPS Timing Antenna
3dB Beamwidth
110 ±
10
Model:
GPS-1575-38DBN
Front to Back:
10dB MIN
Class:
Timing Antenna
Axial Ratio:
5dB MAX
Frequency:
1575.42
±
5
MH
z
Voltage
:
DC3.5~9V
Noise Figure
:
2.7 dB MAX
Current:
25
m
A MAX
Gain:
38
d
B
Impedance:
50 Ω
,
N/F
VSWR:
≤ 2.5
Weight:
1.0
kg
Item Name:
GNSS Timing Antenna
Polarization:
RHCP
Model:
GNSS-11-16-40DBT/Z
Front to Back:
10dB MIN
Class:
Timing Antenna
Axial Ratio:
3dB MAX
Frequency:
GPS,GLONASS,Galileo
Voltage
:
DC3.3~12V
Noise Figure
:
2.5 dB MAX
Current:
45
m
A MAX
Gain:
40
d
B
Impedance:
50 Ω
,
TNC/F
VSWR:
≤ 2.0
Weight:
1.0
kg
Item Name:
GNSS Timing Antenna
Polarization:
RHCP
Model:
GNSS-11-17-40DBT/B
Horizontal:
360
Class:
Timing Antenna
Axial Ratio:
3dB MAX
Frequency:
GPS,GLONASS,Galileo
Voltage
:
DC3.3~16V
Noise Figure
:
2.0 dB MAX
Current:
45
m
A MAX
Gain:
40
d
B (LNA)
Impedance:
50 Ω
,
TNC/F
VSWR:
≤ 2.0
Weight:
1.0
kg
