PRODUCT >> NEX10 SERIES RF CONNECTORS

　

　

　

　

Item Name:

RF Connector

V.S.W.R:

≤ 1.15

Model:

NEX10/M-1/2"SF-CPJ

Inner plating:

Silver plate

Class:

NEX10

Shell plating:

Tri-Metal or Silver

Frequency:

DC-8.5GHz

Temperature:

-40℃- +85℃

Impedance:

50 Ω

PIM:

-160dBc@2X20W

Match Cable:

1/2" Superflexible

Durability:

500 Cycles

Item Name:

RF Connector

V.S.W.R:

≤ 1.15

Model:

NEX10/M-1/2"-CPJ

Inner plating:

Silver plate

Class:

NEX10

Shell plating:

Tri-Metal or Silver

Frequency:

DC-8.5GHz

Temperature:

-40℃- +85℃

Impedance:

50 Ω

PIM:

-160dBc@2X20W

Match Cable:

1/2" Flexible

Durability:

500 Cycles

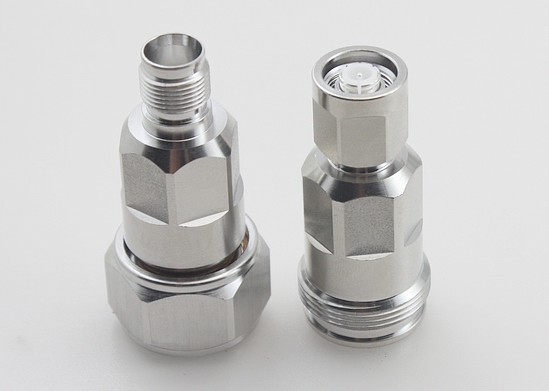

NEX10 RF Adapter

Item Name:

RF Adapter

V.S.W.R:

≤ 1.08(DC-8.5G)

Model:

NEX10/M-SMA/F

Inner plating:

Silver plate

Class:

NEX10

Shell plating:

Tri-Metal or Silver

Frequency:

DC-8.5GHz

Temperature:

-40℃- +85℃

Impedance:

50 Ω

Pluggable Force:

≥ 1.5Nm

PIM:

-155dBc@2X20W(Typ)

Durability:

500 Cycles

Item Name:

RF Adapter

V.S.W.R:

≤ 1.08(DC-8.5G)

Model:

NEX10/M-NEX10/M

Inner plating:

Silver plate

Class:

NEX10

Shell plating:

Tri-Metal or Silver

Frequency:

DC-8.5GHz

Temperature:

-40℃- +85℃

Impedance:

50 Ω

Pluggable Force:

≥ 1.5Nm

PIM:

-160dBc@2X20W(Typ)

Durability:

500 Cycles

Item Name:

RF Adapter

V.S.W.R:

≤ 1.08(DC-8.5G)

Model:

NEX10/F-NEX10/F

Inner plating:

Silver plate

Class:

NEX10

Shell plating:

Tri-Metal or Silver

Frequency:

DC-8.5GHz

Temperature:

-40℃- +85℃

Impedance:

50 Ω

Pluggable Force:

≥ 1.5Nm

PIM:

-160dBc@2X20W(Typ)

Durability:

500 Cycles

Item Name:

RF Adapter

V.S.W.R:

≤ 1.08(DC-8.5G)

Model:

NEX10/M-N/F

Inner plating:

Silver plate

Class:

NEX10

Shell plating:

Tri-Metal or Silver

Frequency:

DC-8.5GHz

Temperature:

-40℃- +85℃

Impedance:

50 Ω

Pluggable Force:

≥ 1.5Nm

PIM:

-160dBc@2X20W(Typ)

Durability:

500 Cycles

Item Name:

RF Adapter

V.S.W.R:

≤ 1.08(DC-8.5G)

Model:

NEX10/M-N/M

Inner plating:

Silver plate

Class:

NEX10

Shell plating:

Tri-Metal or Silver

Frequency:

DC-8.5GHz

Temperature:

-40℃- +85℃

Impedance:

50 Ω

Pluggable Force:

≥ 1.5Nm

PIM:

-160dBc@2X20W(Typ)

Durability:

500 Cycles

Item Name:

RF Adapter

V.S.W.R:

≤ 1.08(DC-8.5G)

Model:

NEX10/F-N/F

Inner plating:

Silver plate

Class:

NEX10

Shell plating:

Tri-Metal or Silver

Frequency:

DC-8.5GHz

Temperature:

-40℃- +85℃

Impedance:

50 Ω

Pluggable Force:

≥ 1.5Nm

PIM:

-160dBc@2X20W(Typ)

Durability:

500 Cycles

Item Name:

RF Adapter

V.S.W.R:

≤ 1.08(DC-8.5G)

Model:

NEX10/M-N/M

Inner plating:

Silver plate

Class:

NEX10

Shell plating:

Tri-Metal or Silver

Frequency:

DC-8.5GHz

Temperature:

-40℃- +85℃

Impedance:

50 Ω

Pluggable Force:

≥ 1.5Nm

PIM:

-160dBc@2X20W(Typ)

Durability:

500 Cycles

Item Name:

RF Adapter

V.S.W.R:

≤ 1.08(DC-8.5G)

Model:

NEX10/M-43MD/M

Inner plating:

Silver plate

Class:

NEX10

Shell plating:

Tri-Metal or Silver

Frequency:

DC-8.5GHz

Temperature:

-40℃- +85℃

Impedance:

50 Ω

Pluggable Force:

≥ 1.5Nm

PIM:

-165dBc@2X20W(Typ)

Durability:

500 Cycles

Item Name:

RF Adapter

V.S.W.R:

≤ 1.08(DC-8.5G)

Model:

NEX10/M-43MD/F

Inner plating:

Silver plate

Class:

NEX10

Shell plating:

Tri-Metal or Silver

Frequency:

DC-8.5GHz

Temperature:

-40℃- +85℃

Impedance:

50 Ω

Pluggable Force:

≥ 1.5Nm

PIM:

-165dBc@2X20W(Typ)

Durability:

500 Cycles

Item Name:

RF Adapter

V.S.W.R:

≤ 1.08(DC-8.5G)

Model:

NEX10/F-43MD/M

Inner plating:

Silver plate

Class:

NEX10

Shell plating:

Tri-Metal or Silver

Frequency:

DC-8.5GHz

Temperature:

-40℃- +85℃

Impedance:

50 Ω

Pluggable Force:

≥ 1.5Nm

PIM:

-165dBc@2X20W(Typ)

Durability:

500 Cycles

Item Name:

RF Adapter

V.S.W.R:

≤ 1.08(DC-8.5G)

Model:

NEX10/M-DIN/M

Inner plating:

Silver plate

Class:

NEX10

Shell plating:

Tri-Metal or Silver

Frequency:

DC-8.5GHz

Temperature:

-40℃- +85℃

Impedance:

50 Ω

Pluggable Force:

≥ 1.5Nm

PIM:

-160dBc@2X20W(Typ)

Durability:

500 Cycles

NEX10 Female Dust Cap

Item Name:

NEX10 Female Cap

Hex:

12mm

Model:

NEX10/FB-CAP/10

Height:

10mm

Material:

Brass

Waterproof:

IP67

Applicable:

NEX10 Female

Plating:

Nickel

Sealing

Silicone Rubber

Durability:

500 Cycles

Thread:

M10X0.75

Temperature:

-40℃- +85℃

Item Name:

NEX10 Female Cap

Hex:

8mm

Model:

NEX10/FB-CAP/S18

Height:

18mm

Material:

Brass

Waterproof:

IP67

Applicable:

NEX10 Female

Plating:

Nickel

Sealing

Silicone Rubber

Durability:

500 Cycles

Thread:

M10X0.75

Temperature:

-40℃- +85℃

NEX10 Type Torque Wrench

Item Name:

NEX10 Torque Wrench

Wrench:

Nickel Plated

Model:

TW-NEX10-3N/12.2

Handle Rod:

Nickel Plated

Torque:

3N.m

Handle Color:

Black

Tolerance:

-0/+0.5

Applicable:

NEX10 Male

Opening:

12.2mm

Packing:

Box Packing

NEX10 SERIES RF CONNECTORS
